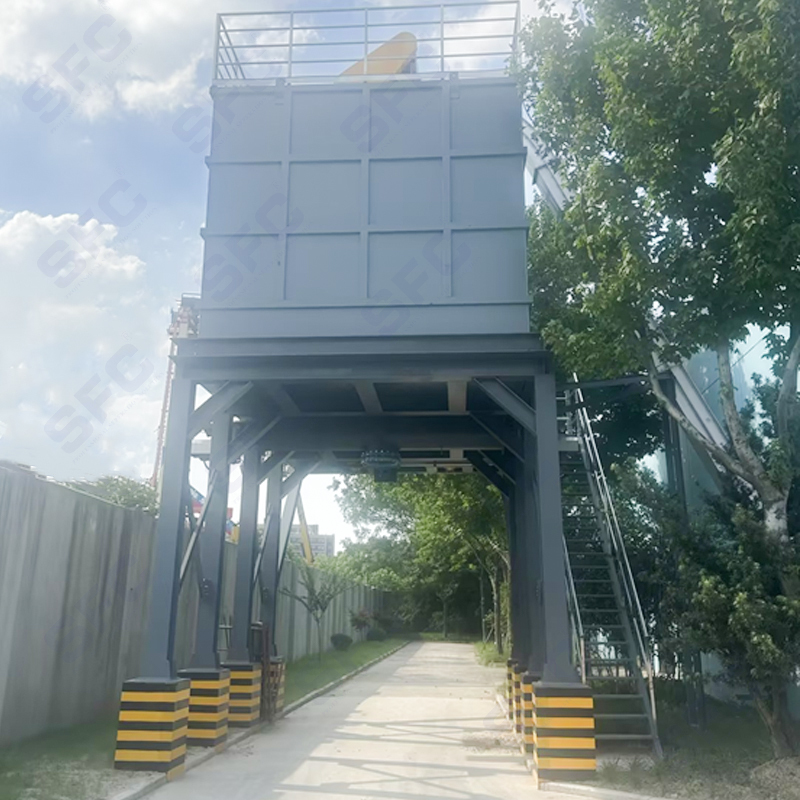

Sludge carriage silo

The carriage is desianed to transport solid bulk materials with no fluidity, such as dewatered sludge, wood chips, etc. The carriage drives several parallel steel frames through a hydraulic device to reciprocate back and forth at the bottom of the silo, and with the material in two strokes. The friction and inertia caused by the different

contact surfaces make the material move in one direction. At the same time, according to this characteristic, the conveying volume of the material can be adjusted by the frequency of the carriage movement.The output materials can be conveyed by screw conveyors, chain conveyors, belt conveyors, etc. to achieve fully enclosed operation.

Advantages:

1. The high-load design can be used for materials that are dificult to handle in various rectanaular or circular silos,and has a strong arch breaking effect;

2. lt has strong versatility and can be designed in the form of underground silo. Loaders or trucks can directly tilt the materials into the silo; it can also be designed in the form of above ground, and the materials are fed into the silo through scraper conveying or pumping.

The bottom screw conveyor discharges the material into the lower loading car;

3. The high-quality hydraulic drive device and strong and wear-resistant components ensure the long-ife operation of the system;

4.The components are simple and reliable, and easy to install on site.
